CNC Automated

CNC Automated

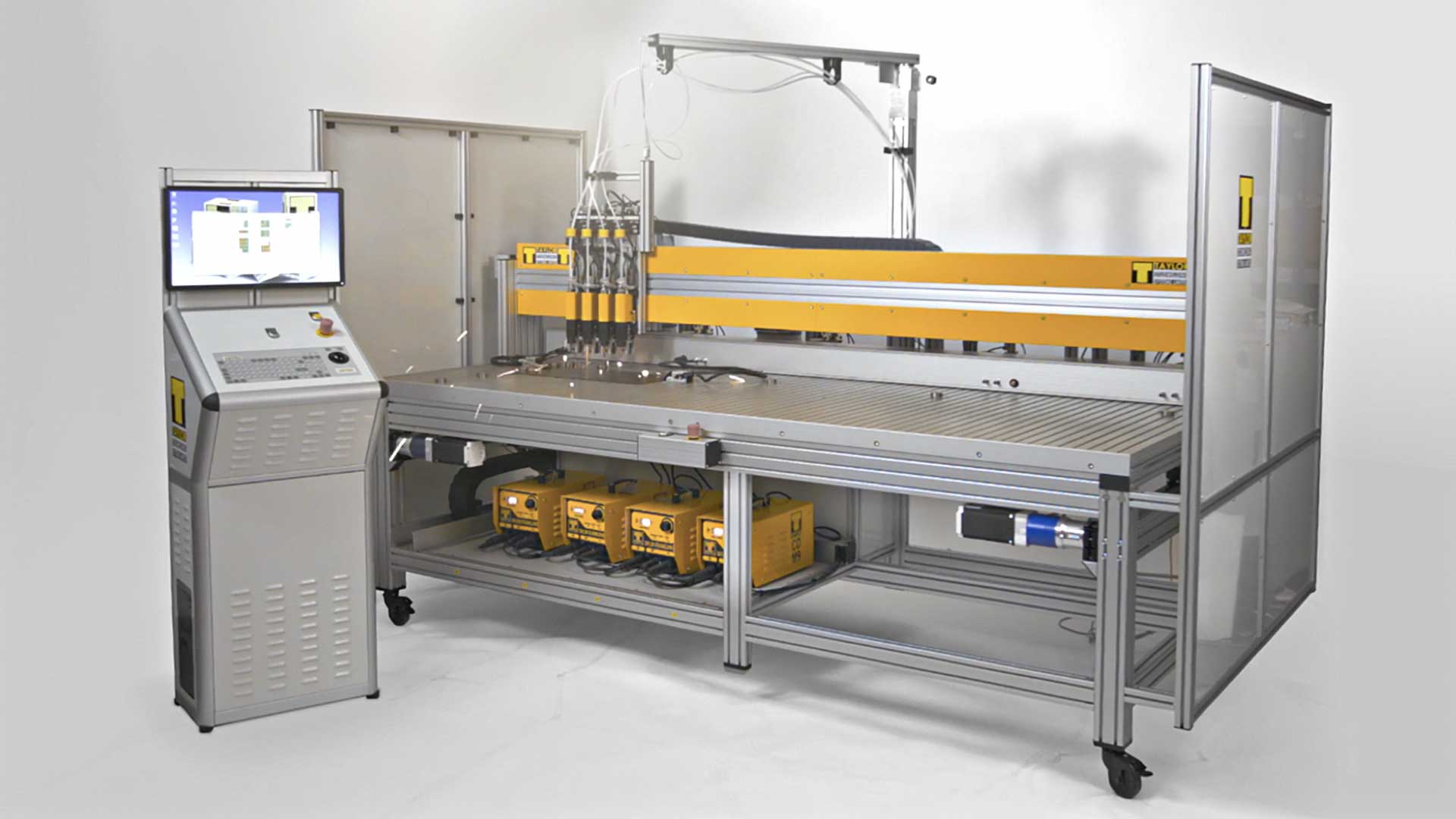

CNC Automated Studwelding Equipment photo


Built to high quality standards, the CNC controlled automatic stud feed production unit is a fast and economic method of studwelding:
  • Easy programming and a quick change system make it ideal for both long and short production runs.
  • Construction:
    • Rigid open Aluminium frame with "T" slot profile bed.
    • Fitted with linear encoders to give high positional accuracy (Servo systems only).
    • Fully guarded.
  • Available with either PC or PLC control.
  • Supplied with heavy duty Servo or Stepper motors to suit customer requirements.
  • Accuracy better than +/- 0.15 mm.
  • Up to 4 axis systems available.
  • Up to 4 welding heads possible.
  • Weld areas up to 3000 x 2000 mm.
  • Systems will weld threaded, unthreaded and internally threaded studs in Mild Steel, Stainless Steel, Aluminium Alloy and Brass from M3 to MB diameter and 6 mm to 35 mm length as standard. Other diameters and lengths available.
